SHRINK TUNNEL MACHINE

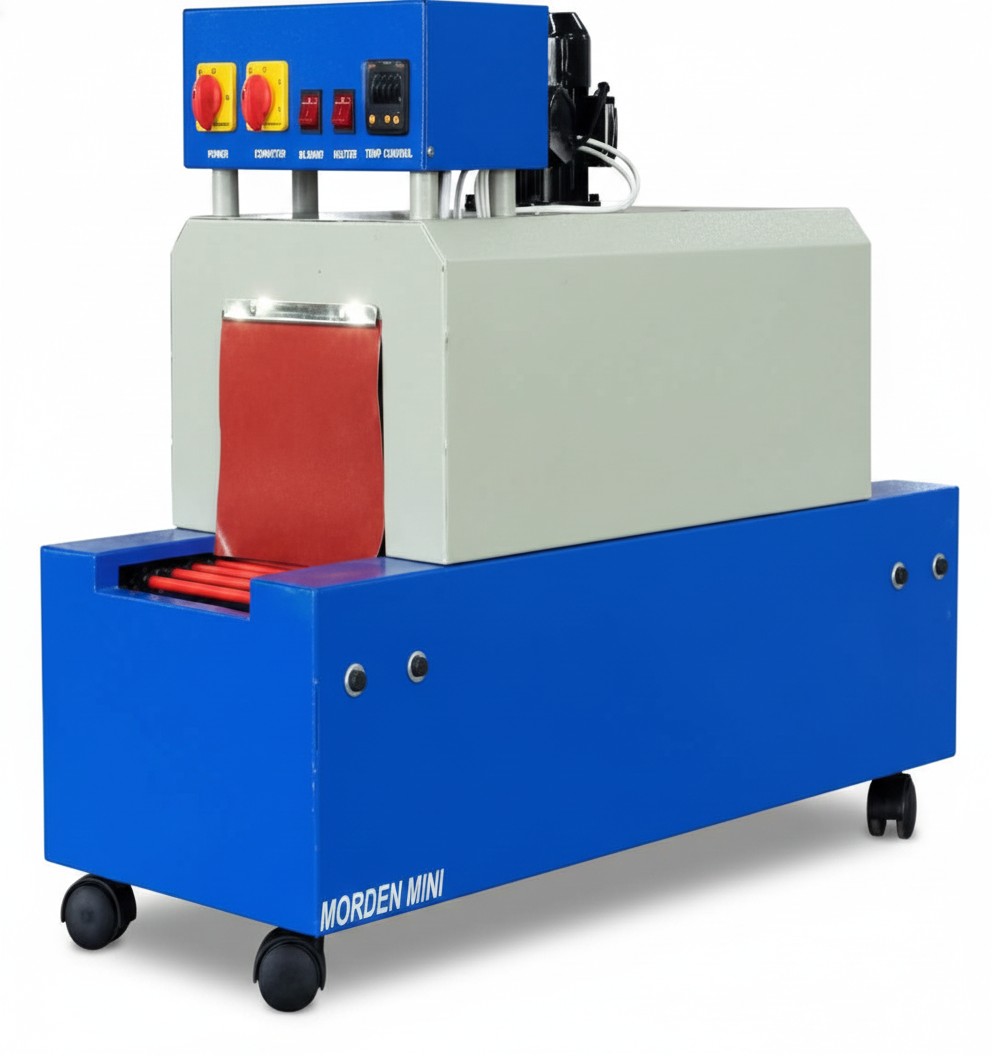

SHRINK TUNNEL MACHINE 248 L

Brand Marketing By	Shiv Pack Systems
Input Supply Voltage	220V AC 50–60 Hz
Power Consumption	2.5 K.V Watt
Chamber Size	600 × 200 × 200 MM (L × W × H)
Conveyor Loading	P.M DC Drive / 30 KG Load
Blower Motor	AC 1/4 HP – 50–60 Hz, 2800 RPM
Temp Control	Digital Selctron
Electrical Heater Fins	U Type Heater
Conveyor Rod	6 MM With Silicon Tube
Conveyor Speed	Variable (Adjustable)
Machine Body	MS Powder Coating
Machine Dimensions	900 × 350 × 470 MM (L × W × H)
Machine Weight	55 KG Approx.

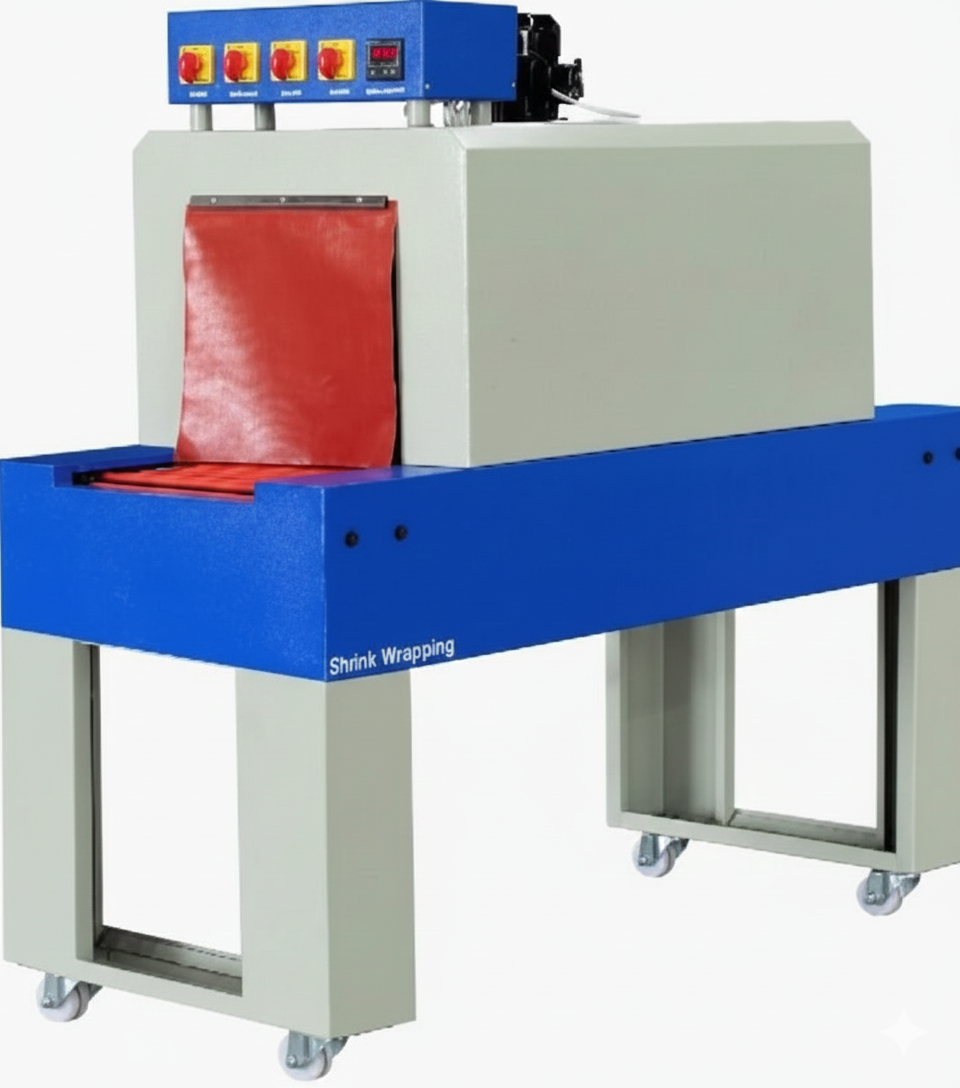

SHRINK TUNNEL MACHINE -3012 H

Brand Marketing By	Shiv Pack Systems
Input Supply Voltage	3 Phase 315V - 415V AC
Power Consumption	4.5 K.V Watt
Chamber Size	750 × 300 × 250 Inch (L × W × H)
Conveyor Rod	6 MM With Silicon Tube
Conveyor Speed	Variable (Adjustment)
Blower Motor	1/4 HP, 1-Phase, 2800 RPM
Conveyor Length	1200 MM Approx
Conveyor Loading	35 KG Approx
Machine Body	Mild Steel Powder Coating
Machine Dimension	1200 × 450 × 900 MM (L × W × H)
Machine Weight	120 KG Approx
