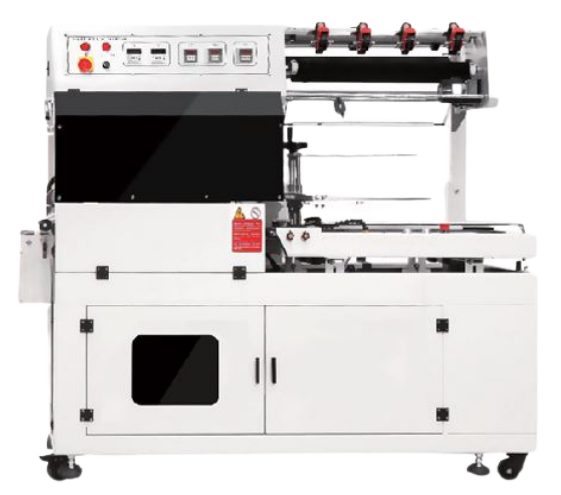

Automatic Side Sealing Machine
| Specification | BF450 | BF550 | BF650 | BF750 | BF850 | BF950 |
|---|---|---|---|---|---|---|
| Power | 1.25 kW | 1.35 kW | 1.45 kW | 1.55 kW | 1.65 kW | 1.75 kW |
| Voltage | 220V / 50–60 Hz | |||||
| Packing Speed | 15 – 25 PCS / Min | |||||
| Maximum Package Size | W+H ≤ 400 H ≤ 180 mm |
W+H ≤ 500 H ≤ 250 mm |
W+H ≤ 600 H ≤ 250 mm |
W+H ≤ 700 H ≤ 250 mm |
W+H ≤ 800 H ≤ 250 mm |
W+H ≤ 900 H ≤ 250 mm |
| Sealing Knife Size | L = 470 mm | L = 570 mm | L = 670 mm | L = 770 mm | L = 870 mm | L = 970 mm |
| Machine Dimension | 1700 × 940 × 1450 mm | 1950 × 1030 × 1470 mm | 2150 × 1130 × 1470 mm | 2300 × 1340 × 1700 mm | 2400 × 1440 × 1710 mm | 2500 × 1540 × 1710 mm |
| Outside Packaging Size | 1750 × 980 × 1580 mm | 2100 × 1140 × 1710 mm | 2200 × 1240 × 1710 mm | 2350 × 1230 × 1470 mm | 2550 × 1330 × 1470 mm | 2750 × 1430 × 1470 mm |
| Applicable Film | POF / PE | |||||
| Conveyor Width | 330 mm | 430 mm | 500 mm | 600 mm | 700 mm | 800 mm |
| Weight | 324 kg | 372 kg | 420 kg | 467 kg | 517 kg | 600 kg |
